NASA's Perseverance on Wednesday successfully cored and extracted a sample from a Mars rock. According to the data downlinked after the sampling, coring of the rock -- which the science team nicknamed 'Issole', went smoothly. However, officials indicated an anomaly during the transfer of the bit that contains the sample into the rover’s bit carousel (which stores bits and passes tubes to the tube processing hardware inside the rover). The rover did as it was designed to do - halting the caching procedure and calling home for further instructions.
This is only the 6th time in human history a sample has been cored from a rock on a planet other than Earth, NASA said, adding they take it slow when they see something anomalous.
Here is what we know so far, and what NASA is doing about it
The anomaly occurred during “Coring Bit Dropoff.” According to NASA, it is when the drill bit, with its sample tube and just-cored sample nestled inside, is guided out of the percussive drill (at the end of the robotic arm) and into the bit carousel (which is located on the rover’s chassis). During the processing of previous cored rock samples, the coring bit travelled 5.15 inches (13.1 centimeters) before sensors began to record the kind of resistance (drag) expected at first contact with the carousel structure. However, this time around the sensor recorded higher resistance than usual at about 0.4 inches (1 centimeter) earlier than expected, and some much higher resistance than expected during the operation.
The team requested additional data and imagery to ensure a proper understanding of the state post anomaly. Because we are presently operating through a set of “restricted Sols” in which the latency of the data restricts the type of activities we can perform on Mars, the NASA team said, adding, it has taken about a week to receive the additional diagnostic data needed to understand this anomaly.
Armed with that data set, they sent up a command to extract the drill bit and sample-filled tube from the bit carousel and undock the robotic arm from the bit carousel. During these activities, a series of hardware images were acquired.

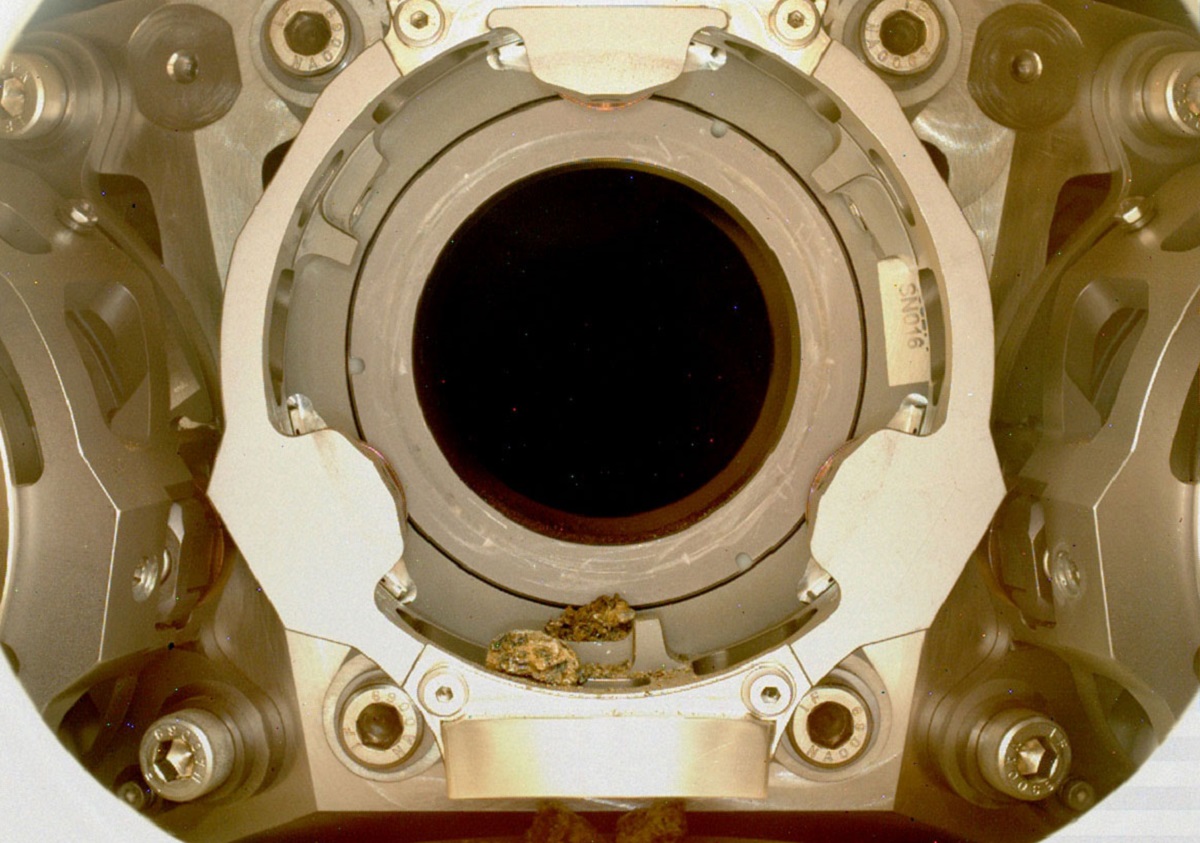

The extraction took place a day before and the data was downlinked early morning the next day. These most recent downlinked images confirm that inside the bit carousel there are a few pieces of pebble-sized debris. The team is confident that these are fragments of the cored rock that fell out of the sample tube at the time of Coring Bit Dropoff, and that they prevented the bit from seating completely in the bit carousel.
Meanwhile, the designers of the bit carousel did take into consideration the ability to continue to successfully operate with debris. However, this was the first time they were doing debris removal and wanted to take whatever time was necessary to ensure these pebbles exit in a controlled and orderly fashion.
(With inputs from NASA blog)
